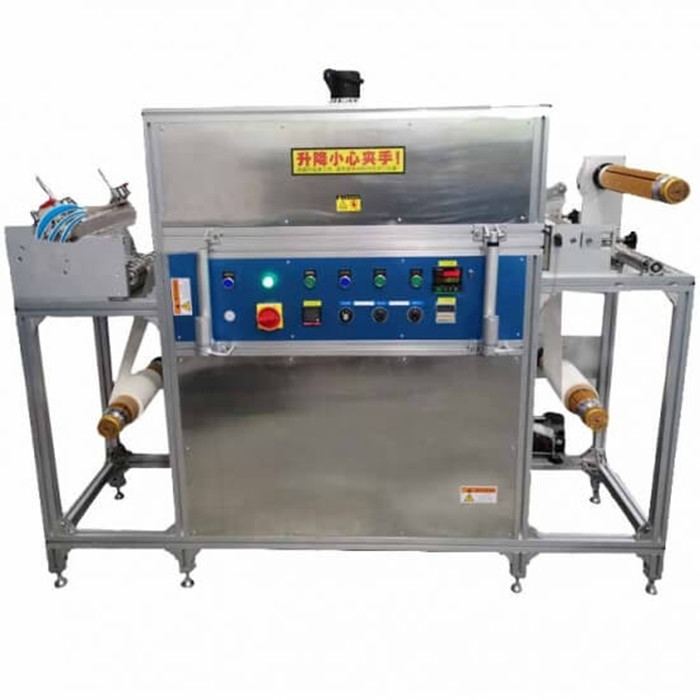

Lab Compact Polymer Coating Coater With Doctor Blade
Product introduce
Lab coater with automatic rewinding, automatic tension control, automatic deviation correction, PID temperature control system, high integration of mechanical structure and high integration of closed-loop control system, has high precision, high efficiency, easy to operate and simply maintain
Can customize the coating head with scraper continuous or intermittence coating, Main used for pilot production.
Specification
|
Coating range |
100-500MM |
|
Drying tunnel lift |
electric lift |
|
Discharge shaft |
3-inch hand up axis |
|
Tension control |
adjustable tension |
|
Laminating device |
with automatic film |
|
Drying tunnel device |
1 meter length, charged hot air |
|
Heating temperature |
room temperature - 180 degrees |
|
Coating method |
scraper |
|
Machine volume |
length 2000* width 600 (reference) |
|
Equipment power supply |
220V 50Hz |
|
Equipment power |
5000W |

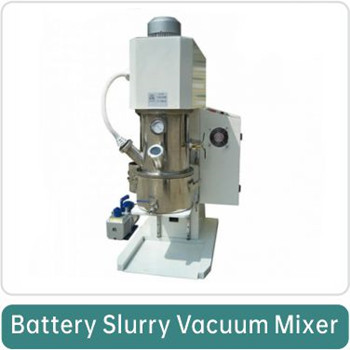

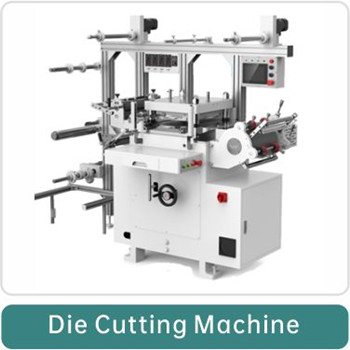

You might also need the following compatible upstream and downstream machines.
